VL-TNL Tunnel Light for Special Applications (up to 2000mm)

VL-TNL Tunnel Light for Special Applications (up to 2000mm)

VL- TNL Tunnel Light

• Ultra high intensity strobe light
• Light adjustable via controller DIP switches(Not for all models)
• Compact design for small parts narrow spaces




Features

How to use


Product Types


Model Colour Wavelength/Color Temperature, Power Suppy Power Consumption IP Raiting
(Option: IP67)

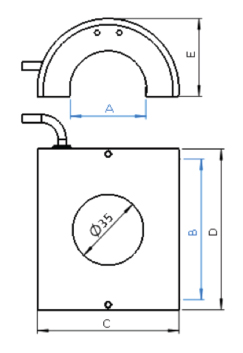

Connection A(mm) B(mm) C(mm) D(mm) E(mm)
VL-TNL-37-70-R-24-C30 R 625nm 24VDC continous: 4W, trigger: 8W IP50 M8 4 pin w 300mm cable 37 70 70 80 38.5
VL-TNL-37-70-W-24-C30 W 6500K 24VDC continous: 5W, trigger: 9W IP50 M8 4 pin w 300mm cable 37 70 70 80 38.5
VL-TNL-200-250-R-24-C30 R 625nm 24VDC 13W IP50 M8 4 pin w 300mm cable 200 250 320 307 146.5
VL-TNL-200-250-W-24-C30 W 6500K 24VDC 20W IP50 M8 4 pin w 300mm cable 200 250 320 307 146.5
VL-TNL-200-500-R-24-C30 R 625nm 24VDC 26W IP50 M8 4 pin w 300mm cable 200 500 320 557 146.5
VL-TNL-200-500-W-24-C30 W 6500K 24VDC 40W IP50 M8 4 pin w 300mm cable 200 500 320 557 146.5
VL-TNL-200-750-R-24-C30 R 625nm 24VDC 39W IP50 M8 4 pin w 300mm cable 200 750 320 807 146.5
VL-TNL-200-750-W-24-C30 W 6500K 24VDC 60W IP50 M8 4 pin w 300mm cable 200 750 320 807 146.5
VL-TNL-200-1000-R-24-C30 R 625nm 24VDC 52W IP50 M8 4 pin w 300mm cable 200 1000 320 1057 146.5
VL-TNL-200-1000-W-24-C30 W 6500K 24VDC 80W IP50 M8 4 pin w 300mm cable 200 1000 320 1057 146.5
VL-TNL-300-250-R-24-C30 R 625nm 24VDC 13W IP50 M8 4 pin w 300mm cable 300 250 420 307 196.5
VL-TNL-300-250-W-24-C30 W 6500K 24VDC 20W IP50 M8 4 pin w 300mm cable 300 250 420 307 196.5
VL-TNL-300-500-R-24-C30 R 625nm 24VDC 26W IP50 M8 4 pin w 300mm cable 300 500 420 557 196.5
VL-TNL-300-500-W-24-C30 W 6500K 24VDC 40W IP50 M8 4 pin w 300mm cable 300 500 420 557 196.5
VL-TNL-300-750-R-24-C30 R 625nm 24VDC 39W IP50 M8 4 pin w 300mm cable 300 750 420 807 196.5
VL-TNL-300-750-W-24-C30 W 6500K 24VDC 60W IP50 M8 4 pin w 300mm cable 300 750 420 807 196.5
VL-TNL-300-1000-R-24-C30 R 625nm 24VDC 52W IP50 M8 4 pin w 300mm cable 300 1000 420 1057 196.5
VL-TNL-300-1000-W-24-C30 W 6500K 24VDC 80W IP50 M8 4 pin w 300mm cable 300 1000 420 1057 196.5
VL-TNL-400-250-R-24-C30 R 625nm 24VDC 13W IP50 M8 4 pin w 300mm cable 400 250 520 307 246.5
VL-TNL-400-250-W-24-C30 W 6500K 24VDC 20W IP50 M8 4 pin w 300mm cable 400 250 520 307 246.5
VL-TNL-400-500-R-24-C30 R 625nm 24VDC 26W IP50 M8 4 pin w 300mm cable 400 500 520 557 246.5
VL-TNL-400-500-W-24-C30 W 6500K 24VDC 40W IP50 M8 4 pin w 300mm cable 400 500 520 557 246.5
VL-TNL-400-750-R-24-C30 R 625nm 24VDC 39W IP50 M8 4 pin w 300mm cable 400 750 520 807 246.5
VL-TNL-400-750-W-24-C30 W 6500K 24VDC 60W IP50 M8 4 pin w 300mm cable 400 750 520 807 246.5
VL-TNL-400-1000-R-24-C30 R 625nm 24VDC 52W IP50 M8 4 pin w 300mm cable 400 1000 520 1057 246.5
VL-TNL-400-1000-W-24-C30 W 6500K 24VDC 80W IP50 M8 4 pin w 300mm cable 400 1000 520 1057 246.5


Sample Applications


Dip Switch Setup


Electrical Connection
