Dome Light for Diffuse Illumination (up to 250mm)
VL-DOM Series Dome Light

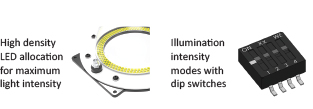

• High intensity, high quantity leds for bright dome effect
• 5 levels of illumination adjustment with
• DIP switch for higher illumination
• Easy to intergrate thanks to mechanical fixing points
• Soft white paint for even lighting
Features
How to use
Product Types
| Model | Color | Wavelength/Color Temperature | Power Supply | Power Consumption | IP Raiting | Cable Length/Connection | Dimensions | Housing Material | Light Angle (°) | ||||
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | |||||||||
| VL-DOM-125-98-R-24-C | R | 625nm | 24VDC | continous:6W, trigger: 11W | IP50 | M8 4 pin connector | 125 | 98 | 100 | 170 | 68 | Aluminum (Black, Anodized) & Aluminum (White, Painted) | 120° |
| VL-DOM-125-98-W-24-C | W | 6500K | 24VDC | continous:8W, trigger: 15W | IP50 | M8 4 pin connector | 125 | 98 | 100 | 170 | 68 | Aluminum (Black, Anodized) & Aluminum (White, Painted) | 120° |
| VL-DOM-250-223-R-24-C | R | 625nm | 24VDC | continous:12W, trigger: 22W | IP50 | M8 4 pin connector | 250 | 223 | 150 | 295 | 132 | Aluminum (Black, Anodized) & Aluminum (White, Painted) | 120° |
| VL-DOM-250-223-W-24-C | W | 6500K | 24VDC | continous:16W, trigger: 29W | IP50 | M8 4 pin connector | 250 | 223 | 150 | 295 | 132 | Aluminum (Black, Anodized) & Aluminum (White, Painted) | 120° |
Sample Applications
Dip Switch Setup
Electrical Connection
