VL-TNL Tunnel Light for Special Applications (up to 1000mm)
VL- TNL Tunnel Light
• Ultra high intensity strobe light
• Light adjustable via controller DIP switches(Not for all models)
• Compact design for small parts narrow spaces
Features
How to use
Product Types
| Model | Color | Wavelength/Color Temperature | Power Supply | Power Consumption | IP Raiting (Option: IP67) | Cable Length/Connection | Dimensions | Housing Material | Light Angle (°) | Type | ||||
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | ||||||||||
| VL-TNL-37-70-R-24-C30 | R | 625nm | 24VDC | continous: 4W, trigger: 8W | IP50 | M8 4 pin w 300mm cable | 37 | 70 | 70 | 80 | 38.5 | Aluminum (Black, Anodized) | 120° | A |
| VL-TNL-37-70-W-24-C30 | W | 6500K | 24VDC | continous: 5W, trigger: 9W | IP50 | M8 4 pin w 300mm cable | 37 | 70 | 70 | 80 | 38.5 | Aluminum (Black, Anodized) | 120° | A |
| VL-TNA-200-250-R-24-C30 | R | 625nm | 24VDC | 13W | IP50 | M8 4 pin w 300mm cable | 200 | 250 | 320 | 307 | 147 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | B |
| VL-TNA-200-250-W-24-C30 | W | 6500K | 24VDC | 20W | IP50 | M8 4 pin w 300mm cable | 200 | 250 | 320 | 307 | 147 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | B |
| VL-TNA-200-500-R-24-C30 | R | 625nm | 24VDC | 26W | IP50 | M8 4 pin w 300mm cable | 200 | 500 | 320 | 557 | 147 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | B |
| VL-TNA-200-500-W-24-C30 | W | 6500K | 24VDC | 40W | IP50 | M8 4 pin w 300mm cable | 200 | 500 | 320 | 557 | 147 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | B |
| VL-TNA-300-250-R-24-C30 | R | 625nm | 24VDC | 13W | IP50 | M8 4 pin w 300mm cable | 300 | 250 | 420 | 307 | 197 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | B |
| VL-TNA-300-250-W-24-C30 | W | 6500K | 24VDC | 20W | IP50 | M8 4 pin w 300mm cable | 300 | 250 | 420 | 307 | 197 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | B |
| VL-TNA-300-500-R-24-C30 | R | 625nm | 24VDC | 26W | IP50 | M8 4 pin w 300mm cable | 300 | 500 | 420 | 557 | 197 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | B |
| VL-TNA-300-500-W-24-C30 | W | 6500K | 24VDC | 40W | IP50 | M8 4 pin w 300mm cable | 300 | 500 | 420 | 557 | 197 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | B |
| VL-TNA-400-250-R-24-C30 | R | 625nm | 24VDC | 13W | IP50 | M8 4 pin w 300mm cable | 400 | 250 | 520 | 307 | 247 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | B |
| VL-TNA-400-250-W-24-C30 | W | 6500K | 24VDC | 20W | IP50 | M8 4 pin w 300mm cable | 400 | 250 | 520 | 307 | 247 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | B |
| VL-TNA-400-500-R-24-C30 | R | 625nm | 24VDC | 26W | IP50 | M8 4 pin w 300mm cable | 400 | 500 | 520 | 557 | 247 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | B |
| VL-TNA-400-500-W-24-C30 | W | 6500K | 24VDC | 40W | IP50 | M8 4 pin w 300mm cable | 400 | 500 | 520 | 557 | 247 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | B |
| VL-TNL-200-250-R-24-C30 | R | 625nm | 24VDC | 13W | IP50 | M8 4 pin w 300mm cable | 200 | 250 | 320 | 307 | 147 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-200-250-W-24-C30 | W | 6500K | 24VDC | 20W | IP50 | M8 4 pin w 300mm cable | 200 | 250 | 320 | 307 | 147 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-200-500-R-24-C30 | R | 625nm | 24VDC | 26W | IP50 | M8 4 pin w 300mm cable | 200 | 500 | 320 | 557 | 147 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-200-500-W-24-C30 | W | 6500K | 24VDC | 40W | IP50 | M8 4 pin w 300mm cable | 200 | 500 | 320 | 557 | 147 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-200-750-R-24-C30 | R | 625nm | 24VDC | 39W | IP50 | M8 4 pin w 300mm cable | 200 | 750 | 320 | 807 | 147 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-200-750-W-24-C30 | W | 6500K | 24VDC | 60W | IP50 | M8 4 pin w 300mm cable | 200 | 750 | 320 | 807 | 147 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-200-1000-R-24-C30 | R | 625nm | 24VDC | 52W | IP50 | M8 4 pin w 300mm cable | 200 | 1000 | 320 | 1057 | 147 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-200-1000-W-24-C30 | W | 6500K | 24VDC | 80W | IP50 | M8 4 pin w 300mm cable | 200 | 1000 | 320 | 1057 | 147 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-300-250-R-24-C30 | R | 625nm | 24VDC | 13W | IP50 | M8 4 pin w 300mm cable | 300 | 250 | 420 | 307 | 197 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-300-250-W-24-C30 | W | 6500K | 24VDC | 20W | IP50 | M8 4 pin w 300mm cable | 300 | 250 | 420 | 307 | 197 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-300-500-R-24-C30 | R | 625nm | 24VDC | 26W | IP50 | M8 4 pin w 300mm cable | 300 | 500 | 420 | 557 | 197 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-300-500-W-24-C30 | W | 6500K | 24VDC | 40W | IP50 | M8 4 pin w 300mm cable | 300 | 500 | 420 | 557 | 197 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-300-750-R-24-C30 | R | 625nm | 24VDC | 39W | IP50 | M8 4 pin w 300mm cable | 300 | 750 | 420 | 807 | 197 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-300-750-W-24-C30 | W | 6500K | 24VDC | 60W | IP50 | M8 4 pin w 300mm cable | 300 | 750 | 420 | 807 | 197 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-300-1000-R-24-C30 | R | 625nm | 24VDC | 52W | IP50 | M8 4 pin w 300mm cable | 300 | 1000 | 420 | 1057 | 197 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-300-1000-W-24-C30 | W | 6500K | 24VDC | 80W | IP50 | M8 4 pin w 300mm cable | 300 | 1000 | 420 | 1057 | 197 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-400-250-R-24-C30 | R | 625nm | 24VDC | 13W | IP50 | M8 4 pin w 300mm cable | 400 | 250 | 520 | 307 | 247 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-400-250-W-24-C30 | W | 6500K | 24VDC | 20W | IP50 | M8 4 pin w 300mm cable | 400 | 250 | 520 | 307 | 247 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-400-500-R-24-C30 | R | 625nm | 24VDC | 26W | IP50 | M8 4 pin w 300mm cable | 400 | 500 | 520 | 557 | 247 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-400-500-W-24-C30 | W | 6500K | 24VDC | 40W | IP50 | M8 4 pin w 300mm cable | 400 | 500 | 520 | 557 | 247 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-400-750-R-24-C30 | R | 625nm | 24VDC | 39W | IP50 | M8 4 pin w 300mm cable | 400 | 750 | 520 | 807 | 247 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-400-750-W-24-C30 | W | 6500K | 24VDC | 60W | IP50 | M8 4 pin w 300mm cable | 400 | 750 | 520 | 807 | 247 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-400-1000-R-24-C30 | R | 625nm | 24VDC | 52W | IP50 | M8 4 pin w 300mm cable | 400 | 1000 | 520 | 1057 | 247 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |
| VL-TNL-400-1000-W-24-C30 | W | 6500K | 24VDC | 80W | IP50 | M8 4 pin w 300mm cable | 400 | 1000 | 520 | 1057 | 247 | Aluminum (Black, Anodized) & Steel (White, Painted) | 120° | C |

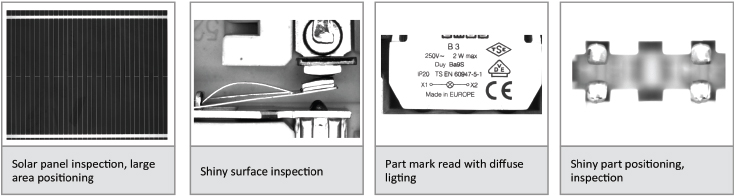

Sample Applications
Dip Switch Setup
Electrical Connection
Just type A has connection with STROBE.
