Compact Backlight (30 to 200mm)

Compact Backlight (30 to 200mm)

VL-­BLC Series High Intensity Compact Backlight


• Maximum LED density for highest light intensity
• Compact design for small areas
• Polycarbonate, robust diffuser
• Cooling grooves for higher lifetime

Features

How to use

Product Types

Model Color Wavelength/Color Temperature Power Supply Power Consumption IP Raiting     (Option: IP67) Cable Length/Connection Dimensions Housing Material Light Angle (°)
A(mm) B(mm) C(mm) D(mm) E(mm)
VL-BLC-30-30-R-24-C30 R 625nm 24VDC 1.2W IP50 M8 4 pin w 300mm cable 30 30 37 48 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-30-30-W-24-C30 W 6500K 24VDC 1.4W IP50 M8 4 pin w 300mm cable 30 30 37 48 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-30-60-R-24-C30 R 625nm 24VDC 2.2W IP50 M8 4 pin w 300mm cable 30 60 37 79 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-30-60-W-24-C30 W 6500K 24VDC 2.7W IP50 M8 4 pin w 300mm cable 30 60 37 79 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-50-50-R-24-C30 R 625nm 24VDC 2.2W IP50 M8 4 pin w 300mm cable 50 50 55 66 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-50-50-W-24-C30 W 6500K 24VDC 3W IP50 M8 4 pin w 300mm cable 50 50 55 66 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-60-60-R-24-C30 R 625nm 24VDC 4.5W IP50 M8 4 pin w 300mm cable 60 60 68 79 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-60-60-W-24-C30 W 6500K 24VDC 5.5W IP50 M8 4 pin w 300mm cable 60 60 68 79 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-75-40-R-24-C30 R 625nm 24VDC 2.7W IP50 M8 4 pin w 300mm cable 75 40 46 91 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-75-40-W-24-C30 W 6500K 24VDC 3.7W IP50 M8 4 pin w 300mm cable 75 40 46 91 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-90-90-R-24-C30 R 625nm 24VDC 9.5W IP50 M8 4 pin w 300mm cable 90 90 99 110 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-90-90-W-24-C30 W 6500K 24VDC 13W IP50 M8 4 pin w 300mm cable 90 90 99 110 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-75-120-R-24-C30 R 625nm 24VDC 8W IP50 M8 4 pin w 300mm cable 75 120 91 126 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-75-120-W-24-C30 W 6500K 24VDC 11W IP50 M8 4 pin w 300mm cable 75 120 91 126 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-50-150-R-24-C30 R 625nm 24VDC 6,5W IP50 M8 4 pin w 300mm cable 50 150 55 164 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-50-150-W-24-C30 W 6500K 24VDC 8.5W IP50 M8 4 pin w 300mm cable 50 150 55 164 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-100-100-R-24-C30 R 625nm 24VDC 8.5W IP50 M8 4 pin w 300mm cable 100 100 104 116 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-100-100-W-24-C30 W 6500K 24VDC 11W IP50 M8 4 pin w 300mm cable 100 100 104 116 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-120-120-R-24-C30 R 625nm 24VDC 17W IP50 M8 4 pin w 300mm cable 120 120 130 141 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-120-120-W-24-C30 W 6500K 24VDC 21W IP50 M8 4 pin w 300mm cable 120 120 130 141 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-150-150-R-24-C30 R 625nm 24VDC 19W IP50 M8 4 pin w 300mm cable 150 150 153 164 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-150-150-W-24-C30 W 6500K 24VDC 23W IP50 M8 4 pin w 300mm cable 150 150 153 164 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-200-200-R-24-C30 R 625nm 24VDC 34W IP50 M8 4 pin w 300mm cable 200 200 202 213 13,5 Aluminum (Black, Anodized) 120°
VL-BLC-200-200-W-24-C30 W 6500K 24VDC 44W IP50 M8 4 pin w 300mm cable 200 200 202 213 13,5 Aluminum (Black, Anodized) 120°





































Sample Applications

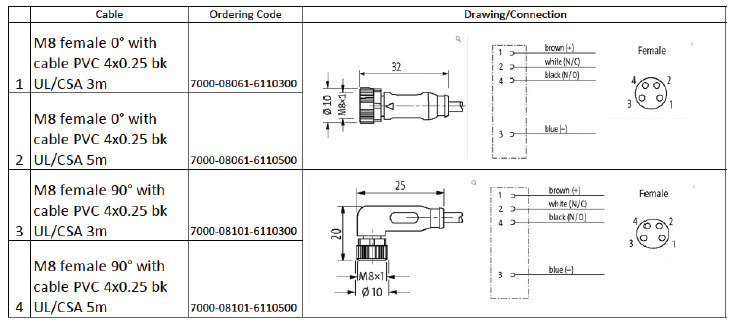

Electrical Connection
