VL-COX Koaxialbeleuchtung für die axiale Ausleuchtung

VL-COX Koaxialbeleuchtung für die axiale Ausleuchtung
• Lichtführung für schattenfreie, koaxiale Ausleuchtung
• Hochleistungs-LED´s für maximale Ausleuchtung
• Kompaktes Design für enge Platzverhältnisse
• Diffuse axiale Beleuchtung, ideal für kleine Teile

Merkmale

Verwendung

Modell | Farbe | Wellenlänge | Energie-versorgung | Energieverbrauch | Anschluss | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
VL-COX-32-16-R-24-C30 | R | 625nm | 24VDC | 1W | M8 4 pin w 300mm Kabel | 32 | 16 | 40 | 59 | 36 |
VL-COX-32-16-W-24-C30 | W | 6500K | 24VDC | 1.25W | M8 4 pin w 300mm Kabel | 32 | 16 | 40 | 59 | 36 |
VL-COX-50-35-R-24-C30 | R | 625nm | 24VDC | 2W | M8 4 pin w 300mm Kabel | 50 | 35 | 58 | 78 | 55 |
VL-COX-50-35-W-24-C30 | W | 6500K | 24VDC | 2.6W | M8 4 pin w 300mm Kabel | 50 | 35 | 58 | 78 | 55 |
VL-COX-94-78-R-24-C30 | R | 625nm | 24VDC | 9W | M8 4 pin w 300mm Kabel | 94 | 78 | 102 | 121 | 98 |
VL-COX-94-78-W-24-C30 | W | 6500K | 24VDC | 11.25W | M8 4 pin w 300mm Kabel | 94 | 78 | 102 | 121 | 98 |
VL-COX-148-133-R-24-C30 | R | 625nm | 24VDC | 18W | M8 4 pin w 300mm Kabel | 148 | 133 | 176 | 156 | 153 |
VL-COX-148-133-W-24-C30 | W | 6500K | 24VDC | 23.5W | M8 4 pin w 300mm Kabel | 148 | 133 | 176 | 156 | 153 |
Anwendungsbeispiele

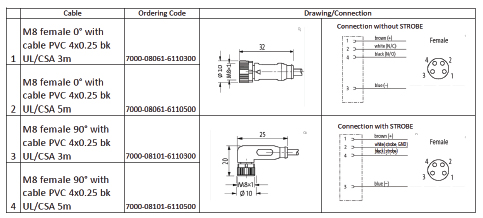

Elektrischer Anschluss
