• Kompaktes mechanisches Design
• Klare, flachwinklige, Hochleistungs-LED´s für
maximale Leistung und Arbeitsdistanz
• Diffusor, Polarisator Zubehör
• 3mm LED´s für diffuse Beleuchtung
• Maximale LED Dichte für höchste Belichtungsintensität
• Kühlrillen für hohe Lebensdauer
Produkteigenschaften
Verwendung
Produkttypen
Modell |
Farbe |
Wellenlänge |
Energie-versorgung |
Energieverbrauch |
Anschluss |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
VL-BAR-23-51-R-24-C30 |
R |
660nm |
24VDC |
1.4W |
M8 4 pin w 300mm
Kabel |
23 |
51 |
27 |
69 |
14 |
VL-BAR-23-51-W-24-C30 |
W |
9000K |
24VDC |
2W |
M8 4 pin w 300mm Kabel |
23 |
51 |
27 |
69 |
14 |
VL-BAR-23-102-R-24-C30 |
R |
660nm |
24VDC |
2.8W |
M8 4 pin w 300mm Kabel |
23 |
102 |
27 |
121 |
14 |
VL-BAR-23-102-W-24-C30 |
W |
9000K |
24VDC |
4W |
M8 4 pin w 300mm Kabel |
23 |
102 |
27 |
121 |
14 |
VL-BAR-23-203-R-24-C30 |
R |
660nm |
24VDC |
4W |
M8 4 pin w 300mm Kabel |
23 |
203 |
27 |
222 |
14 |
VL-BAR-23-203-W-24-C30 |
W |
9000K |
24VDC |
8W |
M8 4 pin w 300mm Kabel |
23 |
203 |
27 |
222 |
14 |
VL-BAR-23-305-R-24-C30 |
R |
660nm |
24VDC |
8W |
M8 4 pin w 300mm Kabel |
23 |
305 |
27 |
324 |
14 |
VL-BAR-23-305-W-24-C30 |
W |
9000K |
24VDC |
12W |
M8 4 pin w 300mm Kabel |
23 |
305 |
27 |
324 |
14 |
|
|
|
|
|
|
|
|
|
|
|
Anwendungsbeispiele

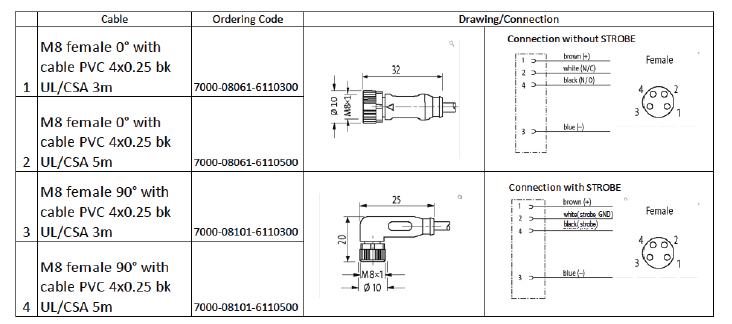

Elektrischer Anschluss
